Dodge/Jeep 42RLE Transmission 4X4 Output Shaft Removal Tool
Made in the USA by Adapt-A-Case
When used in the 4WD application, the 42RLE's output shaft is retained to the rear planet with a squared c-clip. Similar to most front wheel drive axles, but much more permanent. To enable complete unit disassembly, you must remove the output shaft to gain access to the nut holding the rear planet.

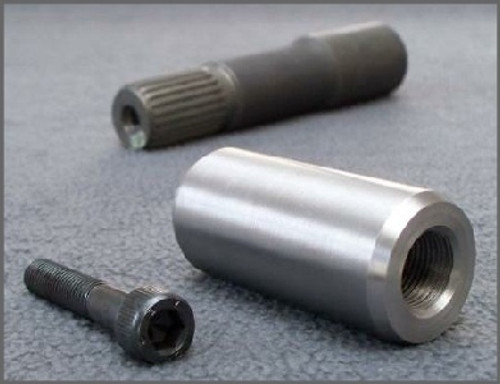

With Adapt-A-Cases new T-8200AC installed, a slide-hammer (with 3/4-16 thread pitch) will make quick work of this seemingly impossible task. We mill the T-8200AC from steel and include a strong, easily replaceable grade 8 cap screw. Be ready for the next one that hits your bench!
Adapt-A-Case Part Number: T-8200AC
