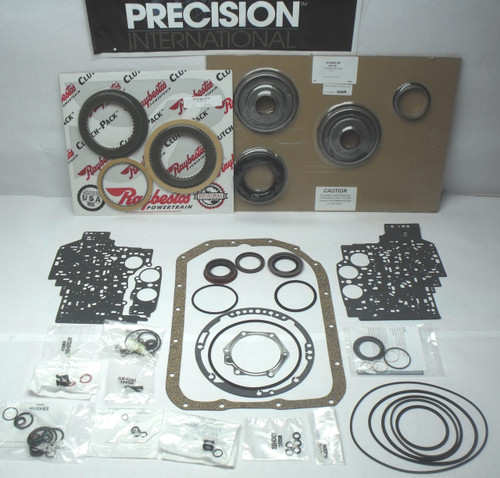

Banner Kit, 4L80E, (1997-2011) Overhaul Kit w/ Molded Rubber Pistons & Raybestos Friction Module
This kit includes:
- 4L80E 1997-2011 Precision International Overhaul Kit w/ Cork Pan Gasket & Molded Rubber Pistons
- 4L80E 1996-Up Raybestos Friction Module
Benefits of Precision International Overhaul Kits
- High Grade Material Construction. Unlike other transmission kit manufactures, Precision International’s overhaul kits contain parts made from high quality rubber & fiber materials.
- Precision International Kits are made in the USA to superior quality standards, which ensure the parts you will receive meet or exceed the OEM specifications. When your 4L80E transmission is rebuilt using a Precision International overhaul kit it was rebuilt using the best parts in the industry.
- Precision International kits are packaged friendly for the rebuilder. You won’t just be receiving a bag of parts when you order one of our kits. The parts in our kits are well packaged, which means less time wasted searching for something you think should be there that isn’t.
- Always Stocked in Our Warehouse & Ready to Ship!
Detailed Listing of Parts this 4L80E Overhaul Kit Contains
- Molded Rubber Piston Pack
- Pan Gasket – Cork or fiber/Farpak (OEM # 8677743)
- Upper Valve Body Gasket (OEM # 24204253)
- Lower Valve Body Gasket (OEM # 24204268)
- 3-4 Accumulator Gasket (OEM # 8661829)
- Pressure Manifold Seals (PI # SUB-K3401)
- Cooler Line Connectors
- 8 Check Balls ¼’’ (OEM # 8631975)
- Center Support Bolt (PI # SUB-K3402)
- Kit: O-Rings, Filter Seals, TCC Regulator Valve Spring (PI # SUB-K4L80E)
- Hat Seal w/ O-Rings (PI # SUB-K3404)
- Sealing Ring Kit, 5T-6P (PI # K34901F)
- Front Pump Gasket (OEM # 8677782)
- Rear Servo Cover Metal Gasket (OEM # 8675728)
- O-Rings and Screen Kit
- Lip Seals, 5 Total
- Extension Housing O-Ring Seal (OEM # 24210605)
- Front Pump Outside O-Ring Seal (OEM # 8681168)
- Extension Housing Metal Clad Seal (OEM # 8661602)
- Pump Metal Clad Seal (OEM # 8677463)
- 4L80E Specific Rebuild Technical Sheets
- Recommended Torque Specs
- Bolt Information
- Electrical Resistance
- Valve Body Check Ball Locations
- Solenoid Chart
The Following Frictions Makeup this Performance Clutch Module
- High Energy 4L80E Forward Clutch (OEM # 8624198)
- High Energy 4L80E Direct Clutch (OEM # 8655619)
- High Energy 4L80E .070" Intermediate Clutch (OEM # 2422966)
- Heavy Duty 4L80E Overdrive Clutch (OEM # 2682802)
- Heavy Duty 4L80E Overrun Clutch (OEM # 8661571)
